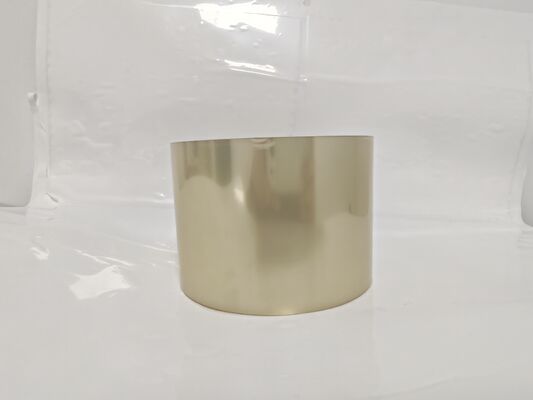

Residue-Free High-Temp Transparent PET Silicone Tape
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100000 Rolls a Week |
Heat Resistant PI Tape
,Reusable PET Tape
,Residue-Free Removal High-Temperature Tape
TX7525H+10 is a 100μm high-temperature transparent silicone tape with PET backing. It features reusability, no residue, strong initial adhesion, and 180°C heat resistance, ideal for precision protection and masking.
- LCD panel surface protection
- PDA panel anti-scratch protection
- Machine shell spray masking
- Silicone rubber fitting assistance
- Electronic component insulation
- Precision die-cutting auxiliary masking
| Item | Spec | Standard |
|---|---|---|
| Total Thickness | 100±5μm | GB/T7125-2014 |
| Dry Coating Thickness | 25±5μm | GB/T7125-2014 |
| Adhesion Strength | 1000g/25mm(180°) | GB/T279-2014 |
| Temperature Resistance | 180°C/30mins | Oven Test |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanyifeng) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
- What is the total thickness of TX7525H+10 Series?100±5 micrometers, compliant with GB/T7125-2014.
- What’s the maximum heat resistance temperature?It withstands 180°C for 30 minutes (oven test).
- Does the tape leave residue after removal?No, it is residue-free and can be re-applied repeatedly.
- What is the dry coating thickness range?The dry silicone coating thickness is 25±5μm.
- What is the adhesion strength standard?1000g per 25mm width (180° peel), tested by GB/T279-2014.
- What base material is the tape made of?It uses PET (polyester film) as the core backing material.
