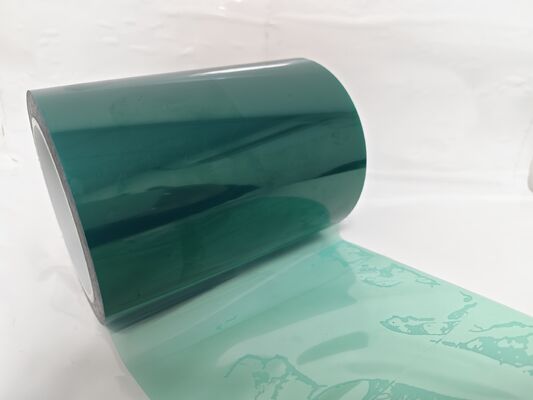

PET Tape with Residue-Free Reusability for Precision Protection
| MOQ: | 1000 ㎡ |
| Price: | $1.29~$1.42/㎡ |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 50000㎡ per week |
100µm Thickness PET Tape
,180°C Heat Resistance Polyester Tape
,Residue-Free Reusability Silicone Tape
TX7525+8 Series is a 100µm green silicone tape with PET backing. It offers strong initial adhesion, residue-free reusability, and 180°C heat resistance, ideal for precision protection and masking in electronics manufacturing.
- LCD panel surface protection
- PDA panel anti-scratch protection
- Machine shell spray masking
- Silicone rubber fitting assistance
- PCB component insulation
- Precision die-cutting auxiliary masking
| Item | Spec | Standard |
|---|---|---|
| Total Thickness | 100±5µm | GB/T7125-2014 |
| Dry Coating Thickness | 25±5µm | GB/T7125-2014 |
| Adhesion Strength | 800g/25mm (180° peel) | GB/T2792-2014 |
| Temperature Resistance | 180°C/30 minutes | Oven Test |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanyifeng) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
-
What is the total thickness of TX7525+8 Series?
The total thickness is 100±5µm, compliant with GB/T7125-2014. -
What is the maximum heat resistance?
It can withstand 180°C for 30 minutes, verified by oven testing. -
Does this tape leave residue after removal?
No, it is residue-free and can be repeatedly applied and removed. -
What is the dry coating thickness?
The dry silicone coating thickness is 25±5µm. -
What is the adhesion strength specification?
The adhesion strength is 800g/25mm (180° peel), tested to GB/T2792-2014. -
What is the base material of this tape?
It uses a PET (polyester film) backing with a silicone coating.
