Heat Resistant Industrial Grade Anti Static Kapton Tape Insulation Tape
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Put the tapes in a plastic bag,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100000 Roll per Week |
Heat Resistant Kapton Tape
,Anti Static Kapton Tape
,Industrial polyimide heat resistant tape

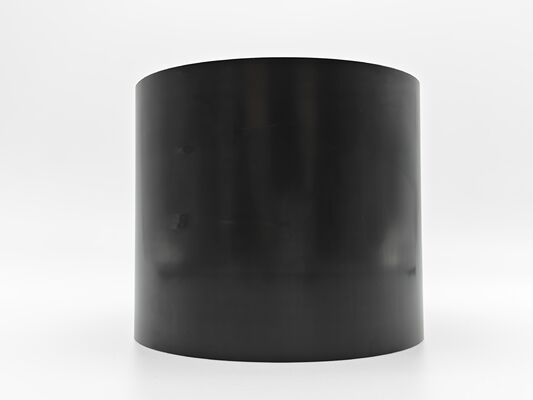

KX5050BJR is a 100µm high-temperature black anti-static polyimide (PI/KAPTON) lamination tape with silicone adhesive. It offers excellent heat resistance, strong adhesion, and anti-static properties, ideal for insulation and protection in electronics and battery applications.
- Insulation and wrapping of electromagnetic wires and cables
- Motor coil insulation and high-temperature protection
- Mobile phone lithium battery cell wrapping and insulation
- High-temperature soldering and reflow process masking
- Protection of electronic components during wave soldering
- Anti-static insulation and heat dissipation in power electronic devices
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 100±5µm | GB/T7125-2014 |
| Dry Coating Thickness | 50±5µm | GB/T7125-2014 |
| Adhesion Strength | ≥800g/25mm (180°) | GB-T2792-2014 |
| Temperature Resistance | 260°C for 30 minutes | Oven test |
| Backing Material | Black anti-static polyimide (PI/KAPTON) | Visual & Physical Test |
| Release Liner | PET (Fluoroplastic release film) | - |
Sanfeng Win New Materials(Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
100±5µm, compliant with GB/T7125-2014.
2.What is its temperature resistance?
Withstands 260°C for 30 minutes in an oven test.
3.Does it leave residue after removal?
No, it is designed for residue-free peeling and reusability.
4.What is the adhesion strength?
≥800g/25mm (180° peel), per GB-T2792-2014.
5.What is the dry coating thickness?
50±5µm, compliant with GB/T7125-2014.
6.What is the backing material of this tape?
It uses a black anti-static polyimide (PI/KAPTON) film for excellent insulation.
