High Initial Adhesion Heat Resistance Double Side Tissue Tape For Electronic Bonding
| MOQ: | 1000 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100000 rolls a week |
High Initial Adhesion double side tissue tape
,95um double side tissue tape
,90um tissue tape double sided

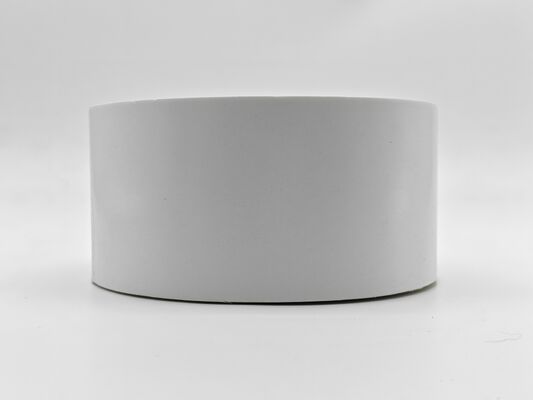

DTE#6 Series is a 90μm tissue paper double-sided tape with acrylic adhesive. It features strong adhesion, good holding power, easy tearing, and heat resistance up to 180°C, ideal for electronic component bonding and die-cut lamination.
- Electronic component assembly and temporary bonding
- Precision die-cut lamination for mobile device parts
- LCD/OLED panel frame fixing and sealing
- Automotive interior trim and component attachment
- Home appliance module bonding and reinforcement
- Thin-film device and optical component positioning
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 90±5μm | GB/T7125-2014 |
| Release Liner Thickness | 80±5μm | GB/T7125-2014 |
| Adhesion Strength | ≥1000g/25mm (180° peel) | GB/T2792-2014 |
| Holding Power | ≥24hr/kg/20mm² | GB/T4851-2014 |
| Initial Tack | ≤150 | GB/T4852-2002 |
| Temperature Resistance | 180°C | Oven Test |
| Test Conditions | 23±1℃, 50±5%RH, steel plate, 300mm/min | - |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
-
What is the substrate material of this tape?
It uses tissue paper as the core substrate, coated with acrylic adhesive on both sides.
-
What is the maximum temperature resistance?
It can withstand temperatures up to 180°C, suitable for high-temperature processing environments.
-
Is it easy to tear by hand?
Yes, the tissue paper substrate makes it easy to tear manually for quick application.
-
What is the adhesion strength to steel?
The 180° peel adhesion strength is at least 1000g/25mm, ensuring stable bonding.
-
Can it be used for die-cutting?
Yes, it has excellent die-cutting performance and is widely used in precision electronic component lamination.
-
Is custom width available?
Yes, we can provide custom widths and die-cut shapes based on customer requirements.
