55um Thickness Industrial Grade Kapton Tape With Residue Free Peeling Heat Resistant
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Hot-seal first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100000 Roll per Week |
55um Kapton Tape
,Heat Resistant Kapton Tape
,60um kapton tape acrylic adhesive

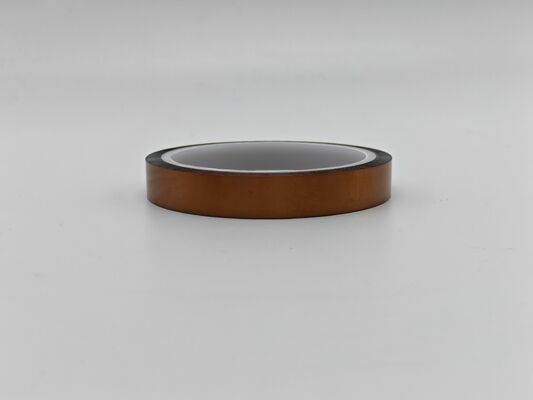

KX2530 is a 55μm high-temperature gold finger Kapton tape with silicone adhesive. It offers 260°C heat resistance (short-term 300°C), reliable adhesion, chemical resistance, and residue-free peeling, ideal for electronic insulation and high-temperature protection.
- Magnet wire and cable wrapping insulation
- Motor and electrical appliance slot insulation
- High-temperature and solder mask protection for PCBs
- Mobile phone lithium battery bundling and fixation
- High-temperature electronic component thermal shielding
- Chemical-resistant masking for industrial processes
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 55±5μm | GB/T7125-2014 |
| Dry Coating Thickness | 30±5μm | GB/T7125-2014 |
| Adhesion Strength | 600±200g/25mm (180°) | GB/T2792-1998 |
| Temperature Resistance | 260°C/30mins (short-term 300°C) | Oven Test |
| Structure | Polyimide (PI/Kapton) + Silicone Adhesive | - |
| Test Conditions | 23±1℃, 55±5%RH, steel plate, 300mm/min | - |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
- What is the substrate material of this tape?
It uses polyimide (PI/Kapton) film as the base material with silicone adhesive. - What is the maximum temperature resistance?
It can withstand 260°C for 30 minutes, with short-term resistance up to 300°C. - Does it have chemical resistance?
Yes, it is alcohol-resistant, acid-resistant, and alkali-resistant, suitable for harsh industrial environments. - What is the adhesion strength range?
The 180° peel strength is 600±200g/25mm, ensuring stable bonding performance. - Is it suitable for battery applications?
Yes, it is widely used for bundling and insulating mobile phone lithium batteries. - Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface.
