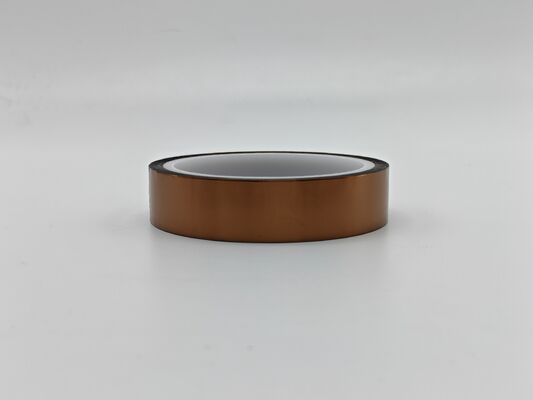

Heat Resistant Industrial Grade Kapton Tape With 50um Thickness And Residue Free Peeling
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Hot-seal first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100000 Roll per Week |
Heat Resistant Kapton Tape
,Masking Kapton Tape
,Protection kapton insulation tape
KX2525 is a 50μm high-temperature gold finger Kapton tape with silicone adhesive. It offers 260°C heat resistance, reliable adhesion, chemical resistance, and residue-free peeling, ideal for electronic insulation and high-temperature component protection.
- Magnet wire and cable wrapping insulation
- Motor and electrical appliance slot insulation
- High-temperature and solder mask protection for PCBs
- Mobile phone lithium battery bundling and fixation
- High-temperature electronic component thermal shielding
- Chemical-resistant masking for industrial processes
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 50±5μm | GB/T7125-2014 |
| Dry Coating Thickness | 25±5μm | GB/T7125-2014 |
| Adhesion Strength | 400-600g/25mm (180°) | GB/T2792-1998 |
| Temperature Resistance | 260°C/30mins | Oven Test |
| Structure | Polyimide (PI/Kapton) + Silicone Adhesive | - |
| Test Conditions | 23±1℃, 55±5%RH, steel plate, 300mm/min | - |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
It uses polyimide (PI/Kapton) film as the base material with silicone adhesive.
2.What is the maximum temperature resistance?
It can withstand 260°C for 30 minutes, suitable for high-temperature electronic processes.
3.Does it have chemical resistance?
Yes, it is alcohol-resistant, acid-resistant, and alkali-resistant, ideal for harsh industrial environments.
4.What is the adhesion strength range?
The 180° peel strength is 400-600g/25mm, ensuring stable bonding performance.
5.Is it suitable for battery applications?
Yes, it is widely used for bundling and insulating mobile phone lithium batteries.
6.Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface.
