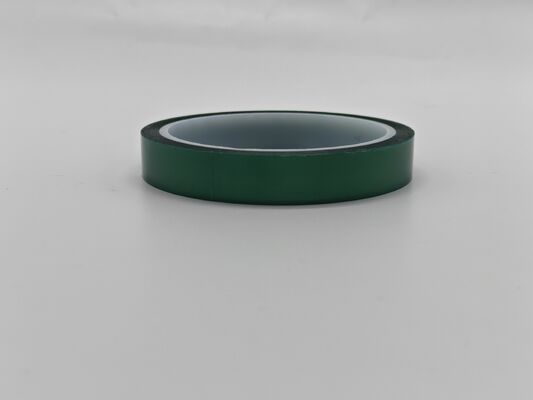

60um Thickness Silicone PET Tape With Residue Free Removal And 180C Heat Resistance
| MOQ: | 5000㎡ |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100000㎡ a week |
60um silicone pet tape
,180C Heat Resistance silicone pet tape
,50um polyethylene terephthalate tape
TX3530 is a 55μm PET-based green silicone tape with 180℃ high temp resistance, strong initial adhesion, reusability and no residue after peeling. It features good insulation & self-adhesion, ideal for industrial surface protection and masking processes with stable performance.
- LCD panel surface protection
- PDA panel glass protection
- Shell painting masking
- Silicone rubber bonding & pasting
- Electronic component insulation protection
- Industrial high-temp process masking
| Item | Specification | Test Standard |
|---|---|---|
| Total Thickness | 55±5 um | GB/T7125-2014 |
| Dry Coating Thickness | 17±5 um | GB/T7125-2014 |
| Adhesion Strength | 700g↑/25mm (180°) | GB/T2792-2014 |
| Temperature Resistance | 180℃ / 30 mins | Oven Test |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
- What’s the base material of TX3530 tape?
It is made of high-quality PET polyester film with silicone adhesive coating. - What’s the maximum heat resistance of this tape?
It can withstand 180℃ high temperature for 30 minutes stably. - Will the tape leave residue after peeling?
No, it has excellent non-residue performance after repeated peeling and pasting. - What’s the storage condition for the tape?
Store in 18-25℃, 40-70% humidity, cool place without direct sunlight. - What’s the shelf life of TX3530 tape?
The maximum usable shelf life is 6 months under standard storage conditions. - What’s the test condition for adhesion strength?
23±1℃, 50±5% humidity, steel plate adherend, 300mm/min peel speed, 180° peel angle.
