Gold Finger Polyimide Kapton Tape 60um Thickness High Temperature Heat Resistant Adhesive
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Hot-seal first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100000 Roll per Week |
Gold Finger Kapton Tape
,Polyimide Kapton Tape
,60um kapton film tape

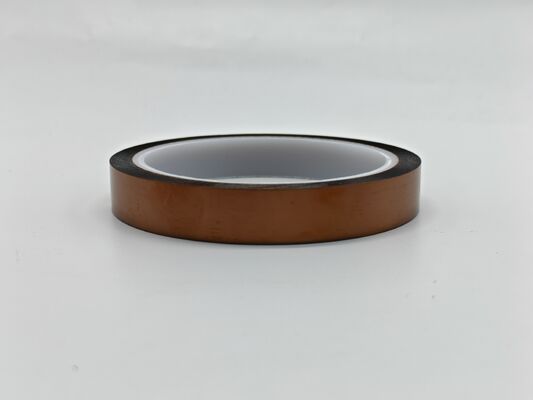

KX3030 is a 60μm high-temperature finger tape with PI (KAPTON) substrate and silicone adhesive. It features excellent heat, alcohol, acid & alkali resistance, residue-free removal, low electrolysis and repeatable sticking, ideal for high-temperature electronic insulation and protection.
- Wrapping of electromagnetic wires and cables for high-temperature protection
- Slot insulation of motors and electrical appliances
- High-temperature and solder mask protection in electronic processing
- Bundling of mobile phone lithium batteries and battery components
- High-temperature insulation protection of electronic circuit boards
- Adhesive fixation of precision electronic parts under high-temperature conditions
| Item | Specification | Test Standard |
|---|---|---|
| Total Thickness | 60±5 μm | GB/T7125-2014 |
| Dry Coating Thickness | 30±5 μm | GB/T7125-2014 |
| Adhesion Strength | Approx. 600g/25mm (180° peel) | GB/T2792-2014 |
| Temperature Resistance | 260℃ for 30 minutes (Pass) | Oven Test |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
What is the material structure of KX3030 tape?
It consists of PI (KAPTON) polyimide film substrate and silicone adhesive layer.
What is the test condition for the tape's adhesion strength?
Test at 23±1℃, 50±5% humidity, 180° peel angle, 300mm/min peel speed on steel plate.
Does KX3030 tape leave adhesive residue after removal?
No, it can be peeled repeatedly with no adhesive residue left on the surface.
What is the storage temperature and humidity for the tape?
Store in 18-25℃ with 40-70% humidity, in a cool place away from direct sunlight.
What is the maximum shelf life of KX3030 tape?
The maximum usable period is 6 months under standard storage conditions.
What chemical resistances does this tape have?
It has excellent resistance to alcohol, acid and alkali, suitable for harsh chemical environments.
