High Temperature Applications 80um PET Silicone Adhesive Tape With Residue Free Removal
| MOQ: | 5000㎡ |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100000㎡ a week |
PET silicone adhesive tape
,80um silicone adhesive tape
,Residue Free Removal heat resistant silicone tape

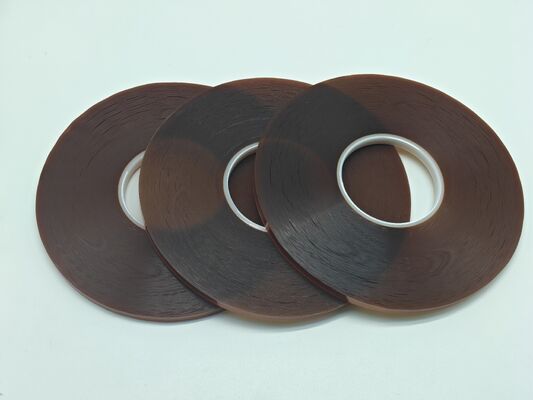

SP-PX80-AB is an 80μm double-sided imitation gold finger tape with PET core, acrylic and silicone adhesives. It offers 180°C heat resistance, strong adhesion, residue-free peeling, and good insulation, ideal for electronic bonding and masking.
- LCD panel and PDA glass surface protection
- High-temperature housing painting masking
- Silicone rubber material bonding and lamination
- Electronic component insulation and thermal shielding
- PCB solder masking during reflow soldering
- Double-sided fixation of imitation gold finger and precision electronic parts
| Item | Specification | Standard |
|---|---|---|
| Active Thickness | 80±5μm | GB/T7125-2014 |
| Adhesive Thickness | A Side: 27±5μm; B Side: 28±5μm | GB/T7125-2014 |
| Peel Strength | A Side >1000g/25mm; B Side >1000g/25mm (180°) | GB/T2792-2014 |
| Temperature Resistance | 180°C/30mins | Oven Test |
| Structure | Acrylic Adhesive + PET + Silicone Adhesive + Double-Sided PET Fluoroplastic Release Film | - |
| Test Conditions | 23±1℃, 50±5%RH, steel plate, 300mm/min | - |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
- What is the structure of this double-sided tape?
It consists of acrylic adhesive, PET core, silicone adhesive, and double-sided PET fluoroplastic release film. - What is the maximum temperature resistance?
It can withstand 180°C for 30 minutes, suitable for high-temperature processes.
- Does it leave residue after peeling?
No, it can be repeatedly peeled without leaving residue on the surface.
- What is the adhesion strength of each side?
Both A and B sides have peel strength over 1000g/25mm, ensuring stable double-sided bonding.
- Is it suitable for electronic insulation?
Yes, it provides good electrical insulation for electronic components and PCBs.
- Can it be used for silicone rubber bonding?
Yes, it is specially designed for bonding silicone rubber materials.
