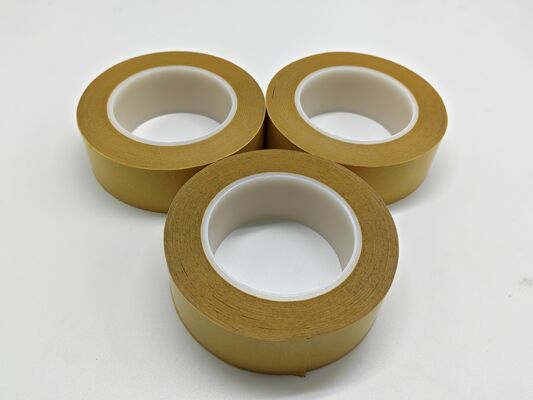

50μm Yellow PET Double Sided Tape
| MOQ: | 1,000 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100,000 rolls a week |
50μm yellow PET tape
,double sided PET adhesive tape
,yellow PET tape with warranty
DTTR50 Series is a 50μm yellow PET double-sided tape with acrylic adhesive. It features strong adhesion, excellent durability, and wide temperature resistance (-5℃~80℃). Ideal for general bonding, electronics, and plastic lamination.
- General bonding of electronics, plastic, and metal parts
- Home appliance component assembly and fixation
- Automotive interior trim and part bonding
- Packaging box reinforcement and sealing
- PCB board temporary fixing during processing
- Display panel frame bonding and positioning
Structure
| NO |
Layer&Material
|
Remarks
|
|
| 1 |
Structure |
Acrylic Adhesive | Acrylic Resin |
| 2 | PET | Polyester Film | |
| 3 | Acrylic Adhesive | Acrylic Resin | |
| 4 | Release Film | Double-side Release Film | |
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 50±10μm | GB/T7125-2014 |
| Release Material Thickness | 150±5μm |
GB/T7125-2014
|
| Adhesion Strength | ≥1000g/25mm (180°) | GB/T2792-2014 |
| Holding Power | ≥12hr/kg/20mm² | GB/T4851-2014 |
| Initial Tack | ≤150 | GB/T4852-2002 |
| Temperature Range | -5℃~80℃ | Oven Test |
| Test Conditions | 23±1℃, 50±5%RH, Steel Plate, 300mm/min | - |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
-
What is the substrate material?
It uses PET (polyester film) as the base material with acrylic adhesive on both sides.
-
What is the total thickness?
The total thickness is 100±5μm, providing stable and sturdy bonding.
-
Does it have good adhesion?
Yes, the 180° peel strength is at least 1000g/25mm, ensuring strong bonding.
-
What temperature can it withstand?
It works stably within the range of -5℃ to 80℃.
-
Is it suitable for plastic bonding?
Yes, it offers excellent adhesion to various plastics, metals, and electronic components.
-
Can it be used for temporary fixing?
Yes, it works well for temporary fixing during processing and assembly.
