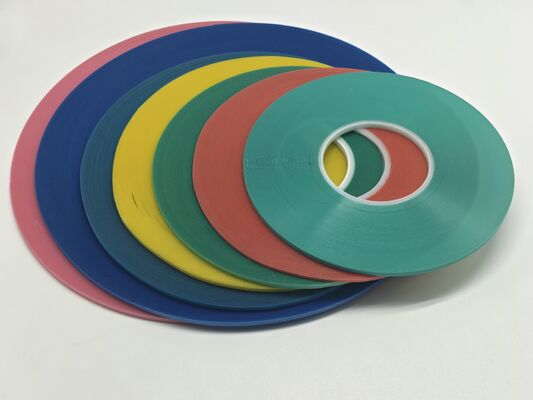

Mesh Single Sided PET Tape for Die-cut Accessory

Mesh single sided tape, also known as spacer tape. It consists of a composite substrate and an adhesive layer, with silicone or acrylic adhesive optional. As a die-cut accessory, it is soft, easy to die-cut, pressure-resistant and cushioning. It provides precise thickness support, cushioning and anti-shift performance, widely used in precision assembly of electronics, mobile phones, laptops and other products. Anti-static option is available. Operating temperature ranges from -20°C to 150°C. Silicone adhesive leaves no residue and features excellent aging resistance.

• Substrate: Multi-layer composite film with a mesh structure
• Thickness: 200μm-5000μm, common thicknesses: 200μm, 300μm, 400μm, 500μm
• Size: Width 3mm-1020mm, Length 100m-1000m, customization acceptable
• Adhesion: ＞400g
• Adhesive: Silicone, Acrylic
• Color: Red, Green, Yellow, Blue, Transparent, etc.

This product can build a stable supporting structure in winding processes such as frame glue processing to effectively protect products, and can also be used for material bearing. It is widely applied for fixing, padding and anti-slip of die-cut rolls. When used for roll product delivery, it prevents product displacement, deformation and glue overflow caused by extrusion between upper and lower layers, enhancing adhesion and cushioning.

Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.

To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.

The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
