60um Thickness Acrylic Protective Film With Acrylic Adhesive For Electronics Protection
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000 rolls |
60um Acrylic Protective Film
,Electronics Protection Acrylic Protective Film
,Transparent Acrylic Protective Film

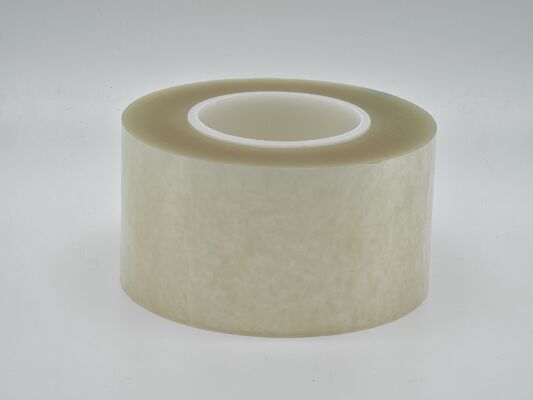

This 60μm transparent acrylic protective film uses PET substrate with acrylic adhesive, featuring excellent light transmittance, mechanical stability, high temperature resistance, and good air permeability. It is ideal for panel protection in flat screen displays.
- Flat panel display surface protection (glass, acrylic, PC)
- Material transfer and temporary bonding
- Electronic component surface protection during processing
- Optical device scratch and dust protection
- High-temperature processing masking for plastic parts
- Precision component surface protection during transportation
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 60±5μm | GB/T7125-2014 |
| Substrate Thickness | 50±5μm | GB/T7125-2014 |
| Adhesion Strength | 6-12g/25mm (180° peel) | GB/T2792-1998 |
| Color | Transparent | Visual inspection |
| Test Conditions | 23±1℃, 50±5%RH, steel plate, 300mm/min |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win, founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
1.What is the substrate material of this protective film?
It uses PET (polyester film) as the base material.
2.What is the total thickness of this product?
The total thickness is 60±5μm, with a substrate thickness of 50±5μm.
3.What is the adhesion strength range?
The 180° peel adhesion strength is 6-12g/25mm.
4.What colors are available for this series?
This series is only available in transparent.
5.What are the main application scenarios?
It is mainly used for protecting flat panel display surfaces (glass, acrylic, PC) and material transfer.
6.What are the standard test conditions?
Tests are conducted at 23±1℃, 50±5%RH, on a steel plate, with a peel speed of 300mm/min and 180° peel angle.
