50um Thickness Acrylic Protective Film With Acrylic Adhesive For Electronics Protection
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 1000 rolls |
50um Acrylic Protective Film
,55um Acrylic Protective Film
,45um protective film for acrylic sheet

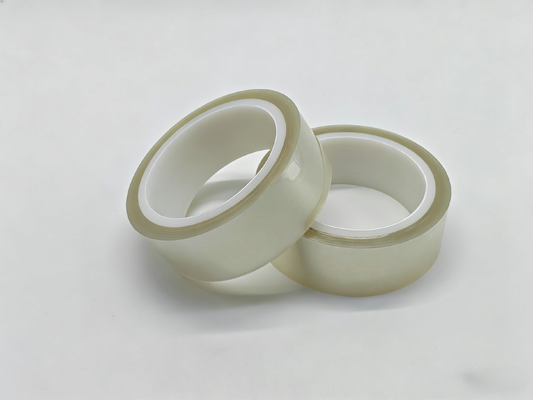

YY0510T is a 0.05mm acrylic protective film with PET base & acrylic adhesive. It features easy peeling, no adhesive transfer, high temperature resistance and scratch protection. Ideal for surface protection of various materials, preserving original luster during transportation, processing and storage.
- Surface protection of metal plates during transportation and processing
- Anti-scratch protection for plastic products in storage and circulation
- Corrosion & pollution prevention for electronic component surfaces
- Gloss preservation of glass and mirror materials in processing
- Surface protection of alloy parts during manufacturing and assembly
- Anti-damage protection for coated materials in logistics and use
| Item | Specification | Test Standard |
|---|---|---|
| Total Thickness | 50±5μm | GB/T7125-2014 |
| Dry Coating Thickness | 10±5μm | GB/T7125-2014 |
| Adhesion Strength | 10±5g/25mm (180°) | GB-T2792-1998 |
| Tensile Strength | ≥130MPa | ASTM D-882 |
| Elongation (TD/MD) | ≤3.0 | GB-13950-1992 |
| Temperature Resistance | 150℃/30mins | Oven Test |
| Width/Length | 1200±0.5mm/1000M±0.5% | National Standard Tape |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (Sanfeng Win, founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
-
What is the core structure of YY0510T protective film?
It consists of PET polyester film base layer and acrylic adhesive layer.
-
What is the valid storage period of this product?
The maximum service life is 6 months under standard storage conditions.
-
What are the standard storage conditions for the film?
Store in a cool place (18-25℃, humidity 55±20%), avoid direct sunlight.
-
What is the peeling angle for adhesion strength test?
The test is conducted at 180° and 90° peeling angles.
-
Will the film leave adhesive residue on the sticked surface?
No, it has the characteristic of no adhesive transfer after peeling.
-
What is the applicable peeling speed for performance testing?
The standard peeling speed is 300mm/min on steel plate adherend.
