25μm PI Film | High-Temperature Polyimide Film for Electronics
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal first, then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100,000 Roll per Week |
25μm polyimide film electronics
,high-temperature PI film
,polyimide film PET tape

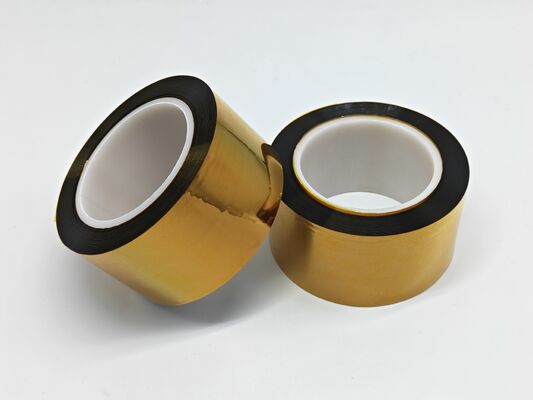

The PI25 Series is a 25μm polyimide (PI) film manufactured via polycondensation of pyromellitic dianhydride (PMDA) and 4,4'-oxydianiline (ODA), followed by casting, imidization, and stretching. This amber-colored film offers exceptional thermal stability, electrical insulation, and mechanical strength. With a thickness of 25±3μm, PI25 withstands 288°C±5°C for 10 seconds, exhibits low water absorption (<4.0%), and provides excellent dielectric properties. It is supplied in rolls on a 76mm rigid paper core, ideal for demanding electronic, and industrial applications.
| Parameter | Specification | Test Standard |
|---|---|---|
| Thickness | 25±3μm | GB/T7125-2014 |
| Water Absorption Rate | <4.0% | – |
| Relative Permittivity (50Hz) | ≤3.9 | Voltage varies with thickness |
| Dielectric Dissipation Factor (50Hz) | ≤4.0×10⁻³ | – |
| Electrical Strength (Average) | ≥50 MV/m | – |
| Electrical Strength (Individual) | ≥40 MV/m | – |
| Density | 1420±20 kg/m³ | – |
| Shrinkage Rate 200°C | ≤0.3% | Oven Test |
| Temperature Resistance | 288°C±5°C / 10 sec | Oven Test |
| Core Inner Diameter | 76mm (rigid paper core) | – |
| Test Conditions | 23±1°C, 50±5% RH | – |
PI25 polyimide film is trusted across multiple high-reliability industries:
- Electrical Insulation – Layer insulation for motors, transformers, generators, and battery packs. Prevents short circuits at high voltages.
- High-Temperature Masking – Used as a coverlay or protective film during solder reflow, wave soldering, and hot bar soldering processes.
- Automotive – Wire and cable wrapping, thermal shielding, and insulation in engine compartments where temperatures exceed conventional material limits.
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
Q1: Can PI25 be used continuously at 260°C?
A: PI25 is rated for 288°C±5°C for 10 seconds (peak). For continuous operation at 260°C, the film will perform well but may exhibit slight discoloration. Long-term exposure (>1000 hours) above 240°C should be validated with your specific process.
Q2: Is PI25 the same as Kapton?
A: PI25 is a general-purpose polyimide film chemically similar to Kapton (DuPont trademark). It meets equivalent thermal, electrical, and mechanical specifications but is offered at a competitive price point. Always test for your specific application.
Q3: How should I store PI25 polyimide film?
A: Store in original packaging at 18–25°C and 40–70% RH, away from direct sunlight. Maximum shelf life is 6 months. Keep the roll wrapped to prevent dust and moisture absorption.
