150μm High-Temperature Polyimide Film for Electrical Insulation
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal first, then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T,L/C,D/P |
| Supply Capacity: | 100,000 Roll per Week |
150μm polyimide film electrical insulation
,high-temperature PI film insulation
,polyimide film for electrical applications

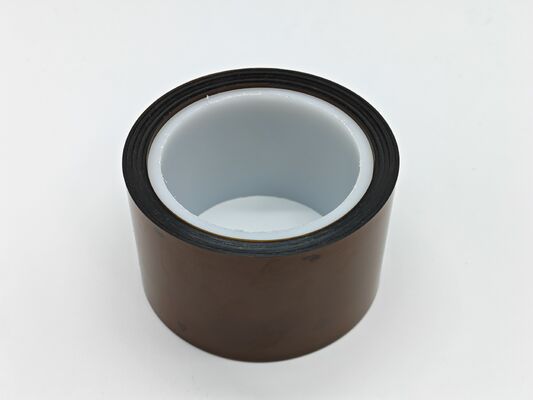

The PI150 Series is a 150μm thick polyimide (PI) raw film manufactured by Sanfeng Win New Material (Jiangsu) Co., Ltd. It is produced through polycondensation of pyromellitic dianhydride and 4,4'-oxydianiline (ODA) in a solvent, followed by casting, imidization, and stretching processes. The film is supplied in rolls with a standard inner core diameter of 76mm rigid paper tube, featuring neat edges without damage.
It is widely used in applications requiring high thermal stability and excellent electrical insulation. Common applications include flexible printed circuit boards (FPCs), insulating tapes, motor and transformer slot insulation, electromagnetic wire wrapping, high-temperature-resistant labels, and insulating layers for electronic components. Its reliable dielectric strength and uniform thickness also make it suitable for automotive electronics, and precision electrical equipment where consistent insulation performance is critical.
| NO | ITEM | SPEC | STANDARD |
|---|---|---|---|
| 1 | Total Thickness | 150士10um | GB/T7125-2014 |
| 6 | Density Kg/m^3 | 1420士20 | / |
| 7 | Color | Amber | / |
| 9 | Surface Gloss |
30±10
|
/ |
PI150 polyimide film is trusted across multiple high-reliability industries:
- Electrical Insulation – Layer insulation for motors, transformers, generators, and battery packs. Prevents short circuits at high voltages.
- High-Temperature Masking – Used as a coverlay or protective film during solder reflow, wave soldering, and hot bar soldering processes.
- Automotive – Wire and cable wrapping, thermal shielding, and insulation in engine compartments where temperatures exceed conventional material limits.
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
Q1: Is PI150 the same as Kapton?
A: PI150 is a general-purpose polyimide film chemically similar to Kapton (DuPont trademark). It meets equivalent thermal, electrical, and mechanical specifications but is offered at a competitive price point. Always test for your specific application.
Q2: How should I store PI150 polyimide film?
A: Store in original packaging at 18–25°C and 40–70% RH, away from direct sunlight. Maximum shelf life is 6 months. Keep the roll wrapped to prevent dust and moisture absorption.
Q3. Can I get free samples?
Free samples are available, buyer only pays shipping cost.
Q4. What certifications do you have?
ISO 14001:2015.
