Battery Blue Protective Film High Adhesion And Anti Warping For Aluminum Battery
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Standard Packaging: | Heat-seal packaging first,then put them into the carton |
| Delivery Period: | 7-10 days |
| Payment Method: | T/T |
| Supply Capacity: | 100000 rolls a week |
Battery Blue Protective Film
,High Adhesion Blue Protective Film
,Anti Warping Blue Protective Film

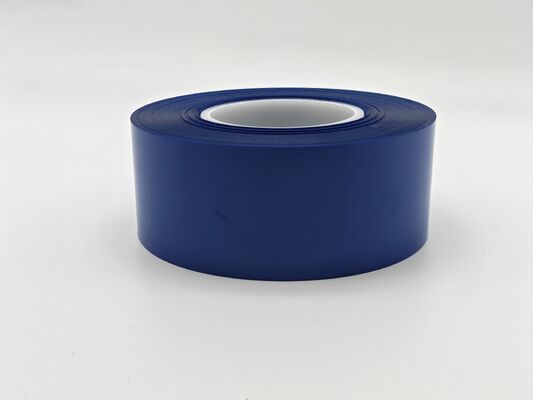

YY-LM110 is a blue battery tape with a composite structure base film, boasting a total thickness of 100±8μm. It features high adhesion, excellent conformability for curved surfaces, outstanding anti-warping performance, and reliable durability, specially designed for internal bonding of new energy batteries and energy storage applications.
- Bonding of new energy battery cells, heat dissipation plates and water cooling plates
- Bonding of battery cells and heat dissipation plates in the energy storage industry
- Structural bonding of precision components in new energy battery packs
- Adhesion of internal insulating and heat-dissipating parts of energy storage equipment
- Curved surface bonding of metal, plastic and glass components in power battery systems
- Assembly bonding of core components in energy storage modules
| Item | Spec | Standard/Method |
|---|---|---|
| Appearance | Blue Translucent | Visual Inspection |
| Tape Thickness | 100±8μm | ASTM D3652 |
| Adhesion to SUS (180°), 20min | ≥1000g/25mm | ASTM D3330 |
| Adhesion to SUS (180°), Room Temp 24h | ≥1000g/25mm | ASTM D3330 |
| High Temperature Holding Power (85℃*1kg*1h) | ≤0.5mm | ASTM D3654 |
| PET Surface Tension | ≥36dyne | ASTM D257 |
| Constant Weight Hanging (80℃*200g), 5min | ≤3mm | Sanfeng Win Standard |
| Constant Weight Hanging (80℃*200g), 1h | ≤50mm | Sanfeng Win Standard |
| Breakdown Voltage, AC 5kV | No Breakdown | ASTM D149 |
| Breakdown Voltage, DC 6kV | No Breakdown | ASTM D149 |
| Lab Value, L* | 42±6 | Sanfeng Win Standard |
| Lab Value, A* | -0.5±1.0 | Sanfeng Win Standard |
| Lab Value, B* | -36±5 | Sanfeng Win Standard |
| CU Value (60°) | 115±10 | Sanfeng Win Standard |
| Warpage Resistance (贴 SUS, 60℃/90% RH/20h) | No Warpage | Sanfeng Win Standard |
| Light Transmittance | 10±5% | ASTM D1003 |
| Haze | 75±7% | ASTM D1003 |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
- What is the total thickness of YY-LM110 blue battery tape?
The total thickness is 100±8μm, tested in accordance with ASTM D3652 standard. - What is the appearance of YY-LM110 tape?
It is blue translucent, inspected by visual method. - What is the adhesion performance of this tape to SUS?
It reaches ≥1000g/25mm at 20min and room temperature 24h (180° peel), complying with ASTM D3330. - What is the breakdown voltage of YY-LM110 battery tape?
It withstands AC 5kV and DC 6kV without breakdown, meeting ASTM D149 standard. - Does YY-LM110 tape have anti-warping performance?
Yes, it shows no warpage after being attached to SUS and tested at 60℃/90%RH for 20h (Sanfeng Win Standard). - What are the key applications of YY-LM110 blue battery tape?
It is mainly used for bonding new energy battery cells, heat dissipation plates, water cooling plates, and core components in the energy storage industry.
